Standard Mixers Single pivot type units are ideally suited to filling moulds or core boxes on an automated or manual type conveyor system.	Articulated Mixers Articulated type mixers offer much greater flexibility and are typically utilised in larger jobbing type moulding work. Articulated mixers can be set up to provide sand to both repetitious and large jobbing moulds.
		Skip to: Dimensions & Features Options

CM SERIES MIXER TYPICAL DIMENSIONS
Model Series	Capacity (TPH)	STANDARD			ARTICULATED
Model Series	Capacity (TPH)	A	B	C	A	B	C	D
CM6,000	2-6	1070	1000	2150	1070	1800	2700	4000
CM10,000	6-12	1260	1200	2900	1460	1800	2875	5000
CM20,000	12-20	1460	1400	3100	1460	1800	2925	5000
CM30,000	20-30	1650	1600	3250	1650	1800	3000	5000

CM SERIES MIXER - FEATURES Single heavy duty horizontal barrel design has been proven to provide consistently coated sand grains with both resin and catalyst for complete chemical reaction On demand mixing with no wasted first and last sand Standard sizes from 2 T/hr to 30 T/hr. Larger capacity mixers available on request Dual start spiral mixing blade arrangement with overlapping blades to minimise internal buildup Individually replaceable tungsten carbide tipped blades held captive in slotted shaft to prevent rotation Safety interlock on both access doors Low sand level proving probes in inlet hoppers to prevent chemical injection when no sand is present Pneumatically controlled adjustable sand rating and isolation gates 320˚ rotation available on standard type mixers Slewing ring on multiple hopper inlets Multiple pump programs Fault diagnostic and indication facility CHEMICAL PUMP SYSTEM Chemical Pump Systems to suit all types of binders Multiple chemical systems on one mixer available Pumping systems located in lockable mixer base or remotely Simple Calibration procedures AC or DC drives available Ester Catalyst Blend systems available OPTIONAL FEATURES Multiple sand metering gates for the accurate blending of two types of sands Fume/Dust extraction on discharge point of mixer Human Machine Interface (HMI) for ease of operation Powered rotation available on articulated mixers Radio remote control available on articulated mixers		Standard type mixer with double door opening displaying full accessibility to mixing shaft and blades for periodic cleaning and maintenance procedures

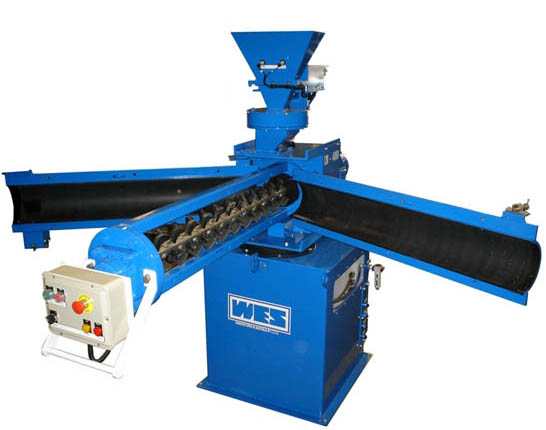

		Hardened tipped mixing blades held captive in slotted shaft to prevent rotation & provide effidient mixing action & lowest possible resin additon rates

		Chemical Pump System with 3-way actuated ball valves
